durable and strong flex hinge for wood spectacle TSH-70

durable and strong flex hinge for wood spectacle TSH-70

Be the first to review this product

$3.00
Product code: 326

Availability: In stock

  • Buy 30 for $2.80 each and save 7%
  • Buy 100 for $2.50 each and save 17%
  • Buy 200 for $2.30 each and save 24%
  • Buy 300 for $2.10 each and save 30%
  • Buy 500 for $1.90 each and save 37%

Quick Overview:

strong and durable spring hinge for wood sunglasses,easily installed spring hinges for wood spectacle.
OR


Details

Features:



TSH-70 is one improved spring hinge model for wood spectacle from ZSH-02, as many customers complaint ZSH-02 better suit their frame, but the quality of TSH-10 is more pleasing,therefore,TSH-70 was born.



WHY WE ARE MUCH BETTER:

As hinge supplier for the biggest wooden eyewear company in US,our hinges are suporier to others in three factores below:

1st: Spring actions: 15000-20,000 times actions after adding oil (openning and closing is counted as one time.)

2nd: Openning angle: control in 22 degree with +/- 2 degree tolerance.

3rd: Horizontal pulling force tester : the spring can resist at least 25 kgs pulling force before it's pulling out of spring box, actually,the real numbers is 25-35kgs as we did double punches on the hinges,on front and back, while others normally 18KGS with one punch.



Quality control machines or tools below:



Effect after installed onto wood sunglasses:



Mass goods before packing:



Availability: in stock currently.

Material: high nickel for hinge,and stainless steel for spacers and screws;

Weight: 3.5 grams/pair with spacers and screws;

drawing:

TSH-70 drawing

Similar models:

TSH-70 is 95 openning angle, if you need 90 angle, please check TSH-10 ; If you prefer 100 degree, please check TSH-10-C ;

If you need round ended hinge, please check TSH-71.



The difference between our products and others:

Left one is others', right ones is our proucts (TSH-70 for instance).


1) profile:





As you could find,left ones are yellow color without plating,it's poor profile which will get broken in use; on the contrary, the color of right ones looks much whiter and shinny, as we use high quality profile which is much stronger and endurable. Attention, it's original color without any plating.



Workmanship:

(1): front view:




(2):side view:




(3): back view:




As you could easily find,the workmanship and surface of left ones is quite rough, while right ones is much more delicate and finner as it's for high demand market.



Springs:



Grubbing screws,stainless steel spacers :



All other supplier use nickel spacers,while our grubbing screws are made of stainles steel only.

How to know:


Sometimes,they are plated by nickel color, but we could know it easily by one magnet.

as nickel color couldn't be attracked by the magnet,while stainless steel on the contrary.


Spring Actions:



continue..........

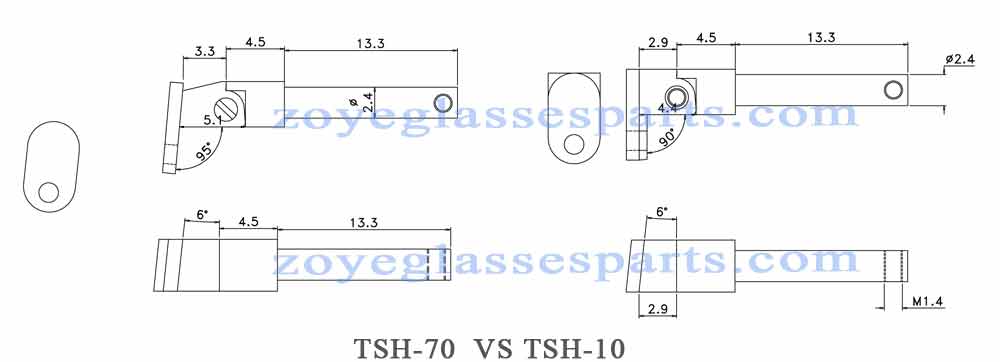

TSH-70 VS TSH-10

same quality, only a little different on hinge head, please check the comparison drawing below.


TSH-70 VS ZSH-02

Almost same size,but quality is completely different ,TSH-70 is much higher quality.

Material: high nickel.





How to install hinges ZSH-02/TSH-10/TSH-70 onto wood bamboo eyeglass:



Firstly,make one recess on your frame front,screwing the spacers (grabbing screws) in .



how to install hinge TSH-10 onto wood bamboo horn frame



Secondly,make square recess on temples, drill one long round hole meanwhile;

 how to install hinge onto wood bamboo horn eyeglass frame





Thirdly,insert temple  hinges in;

 how to install hinge onto wood bamboo horn eyeglass frame





Fourthly, screw the hinges onto front, through metal piece and into spacers.

 how to install hinge onto wood bamboo horn eyeglass frame step 4



Fifthly,screw the hinges from temples side:

 how to install hinge onto wood bamboo horn eyeglass frame step 5



Finished.



How it looks onto frame:

spring hinges on the wood frame
