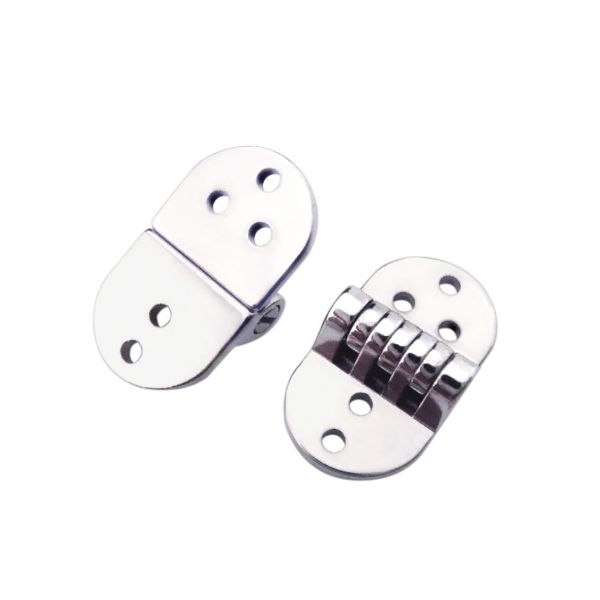

all purpose eyeglass hinge for eyeglass frame TH-25

SKU
TH-25
Add to Wish List
$2.00
  • Buy 30 for $1.80 each and save 10%
  • Buy 100 for $1.60 each and save 20%
  • Buy 200 for $1.40 each and save 30%
  • Buy 300 for $1.30 each and save 35%
  • Buy 500 for $1.20 each and save 40%
$2.00

Features:



This hinge is almost suitable for all kinds of eyeglasses,such as wood sunglasses,plastic sunglasses,aluminum frame,horn eyeglasses,bamboo sunglasses etc,as its installing way is by riveting and screws instead of soldering,so suitable for any frame which has the soldering problem;



Ways of installing hinges onto frames:

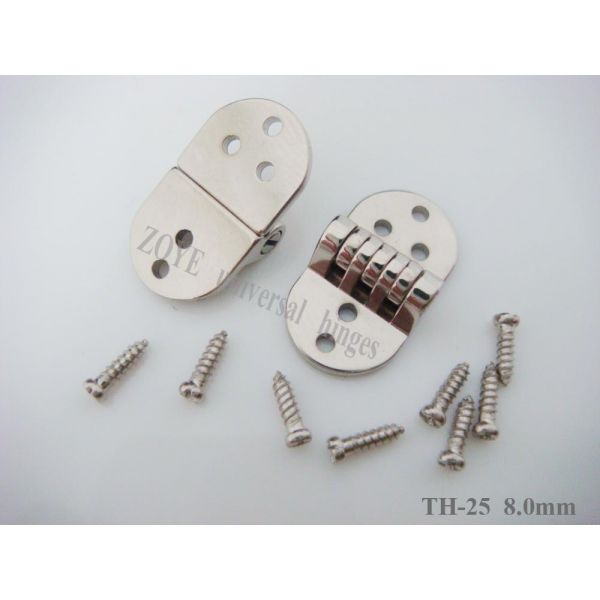

by self-tapping screws: 1.2mm diameter with 3.0mm,3.5mm,4.0mm,5.0mm,6.0mm shaft length available;

by single rivets: 5.0mm,6.0mm,7.0mm,10.0mm shaft length available;

by double rivets plaques (for two holes part only): 5.5mm height (TDV-01),6.0mm(TDV-02),7.0mm(TDV-03), TDV-06,TSV-07,TDV-11,TDV-12,TDV-13,TDV-15;



These screws and single rivets are enclosed free except TDV-06--TDV-15.



Material: high nickel with nickel color coating.

Drawing:

Drawing of TH-25:
