great flex hinge for wood eyewear ZSH-02

SKU
ZSH-02
Add to Wish List
$1.65
  • Buy 50 for $1.60 each and save 3%
  • Buy 100 for $1.50 each and save 9%
  • Buy 200 for $1.40 each and save 15%
  • Buy 300 for $1.30 each and save 21%
  • Buy 500 for $1.20 each and save 27%
$1.65

Features:

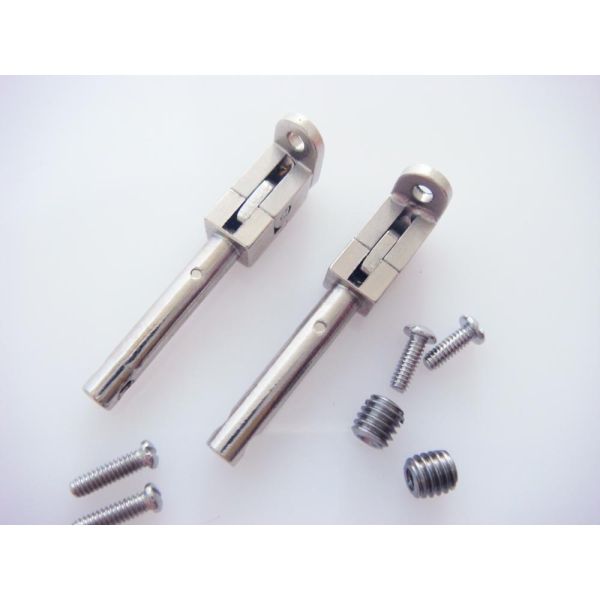

KIndly note the price includes one pair of hinges and necessary spacers screws for installing.

This is one spring hinge,popular for wood sunglasses,bamboo eyewear,TR-90 eyeglass etc,which is soldering free model and could be installed by spacers,screws and glue only.





PACKING:




Where we are better:


Left is other's, right is ours;

in profile:


in spacers:


in workmanship:
Drawing:



How to install hinges ZSH-02/TSH-10/TSH-70 onto wood bamboo eyeglass:



Firstly,make one recess on your frame front,screwing the spacers (grabbing screws) in .



TSh-10-installing-step-1



Secondly,make square recess on temples, drill one long round hole meanwhile;



TSH-10-installing-2



Thirdly,insert temple  hinges in;

TSH-10-installing-step-3





Fourthly, screw the hinges onto front, through metal piece and into spacers.

TSH-10-hinge-installing--4



Fifthly,screw the hinges from temples side:

TSH-10-installing--5



Finished.



How it looks onto frame:

TSH-10-installing
