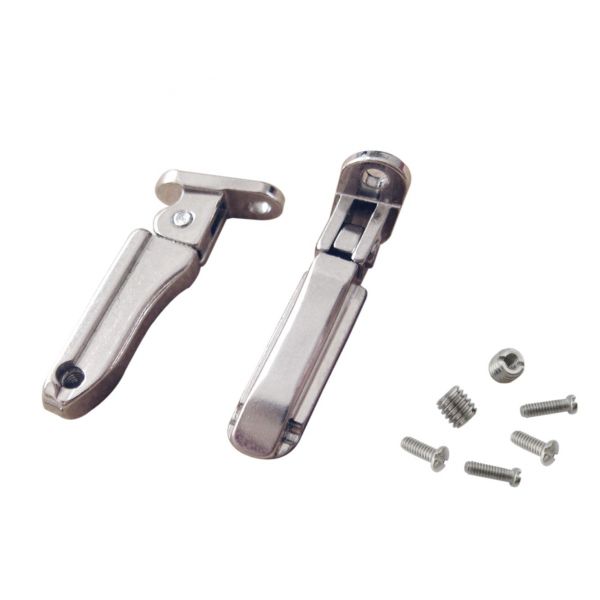

popular spring hinge for timber eyewear TSH-63

popular spring hinge for timber eyewear TSH-63

Be the first to review this product

$2.80
Product code: 4

Availability: In stock

  • Buy 50 for $2.60 each and save 8%
  • Buy 100 for $2.50 each and save 11%
  • Buy 200 for $2.30 each and save 18%
  • Buy 300 for $2.10 each and save 25%
  • Buy 500 for $1.90 each and save 33%

Quick Overview:

great hinges suitable for wood eyeglass,bamboo frames,TR-90 eyeglass,plastic frames etc.
OR


Details

Features:

TSH-63 is one latest spring hinge for nylon eyewear, timber eyewear etc which need flex action but couldn't solder the springs hinges onto the frames.



This hinge is actually improved from TSH-61 originally,but there're two improvements on it.

first, decrease two holes to one hole on the front hinge;

second,change the screw position from front view to side view to hidden the screws.



Sizes:

This is the shortest spring hinges,12..8mm springs body only excluding the front hinge, but the spring is strong enough.

the front hinge is made of three incline angles:

angle between temples and frames:  98 degee;

downward inclining angle of front oval piece: 7.7 degree;

inclining angle of two barrels of frame hinge: 5 degree;

they are completely consistent angles as they all come from the molds.


For every selling, the screws and spacers are matched without any additional charge.


How to install TSH-63:

for front hinge, exactly same as TSH-10, make hole for spacers and screw it in, make recess for racetrack piece,screw the racetrack into spacers;

for temple part, make recess on temples, insert the hinges in, screw the hinge by the side of temple.


Material: high nickel hinge with nickel color plated with stainless steel spacers/screws;

Drawing:

drawing of spring hinge TSH-63
