4mm eyeglass hinges for plastic frame TH-44

Add to Wish List
  • Buy 30 for $1.80 each and save 10%
  • Buy 100 for $1.60 each and save 20%
  • Buy 200 for $1.40 each and save 30%
  • Buy 300 for $1.30 each and save 35%
  • Buy 500 for $1.10 each and save 45%

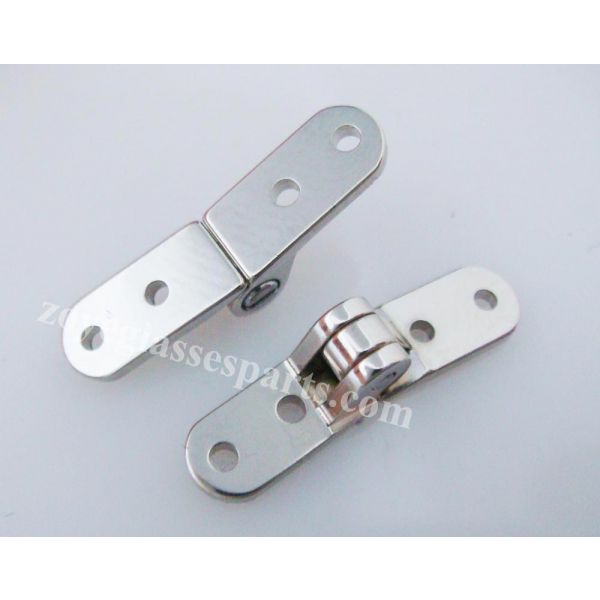

4.0mm hinge with tilt angle for plastic frame:

This hinge is suitable for any frame which exists soldering problem,such as wood sunglasses,plastic sunglasses,aluminum frame,horn eyeglasses,bamboo sunglasses etc,as its installed onto frame by pins or screws instead of soldering.


high nickel with shinny nickel color plating.

widht: 4mm;
length: 8.6mm for both temple and front hinges.
tilt angle: 5 degree for both temple and front hinges.

Drawing of TH-44:

 Ways of installing hinges onto frames:

by self-tapping screws: 1.2mm diameter with 3.5mm,4.2mm,5.0mm 6.0mm shaft length available for option
by single rivets:

for front: 1.1mm diameter rivets, 6.0mm (TSV-03) and 8.0mm shaft length (TSV-13) available;

for temple: 1.2mm diameter rivets, 5.0mm,6.0mm,7.0mm,8.0mm,10.0mm shaft length available.

Please note these screws or rivets are enclosed  free for your order.
