2.0mm nuts with stainless steel screws TSN-005

2.0mm nuts with stainless steel screws TSN-005

Be the first to review this product

$0.30
Product code: 263

Availability: In stock

  • Buy 100 for $0.28 each and save 7%
  • Buy 200 for $0.25 each and save 17%
  • Buy 300 for $0.20 each and save 34%
  • Buy 500 for $0.15 each and save 50%

Quick Overview:

stainless stell screws and nuts, for fixing our all-purpose hinges onto frames

* Required Fields



Details

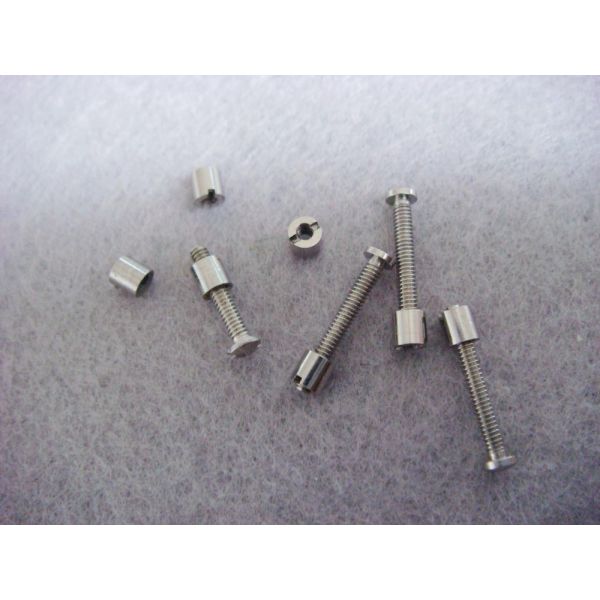

Made of stainless steel completely.



Nuts size: 2.0mm height,2.0mm outside diameter, 1.2mm thread inside with 0.4mm deep slot.

Screws: bare head (no  one or cross slots), 1.2mm thread diameter and 10mm shaft length.

developped for fixing our all-purpose hinges TH-21 to TH-35,but could be used anywhere else.

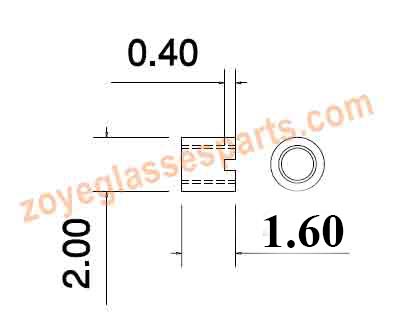

Drawing:

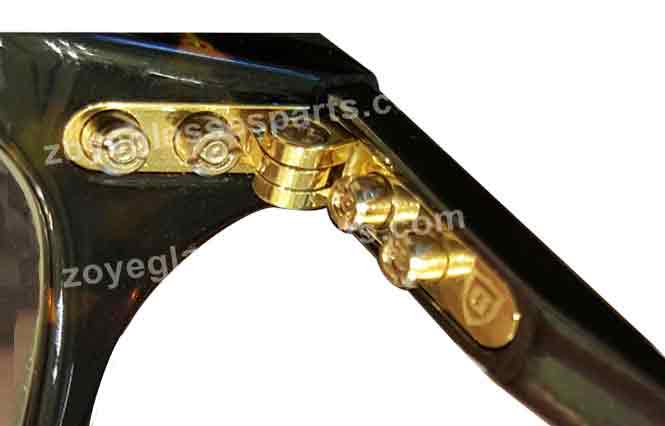

installing effect:
